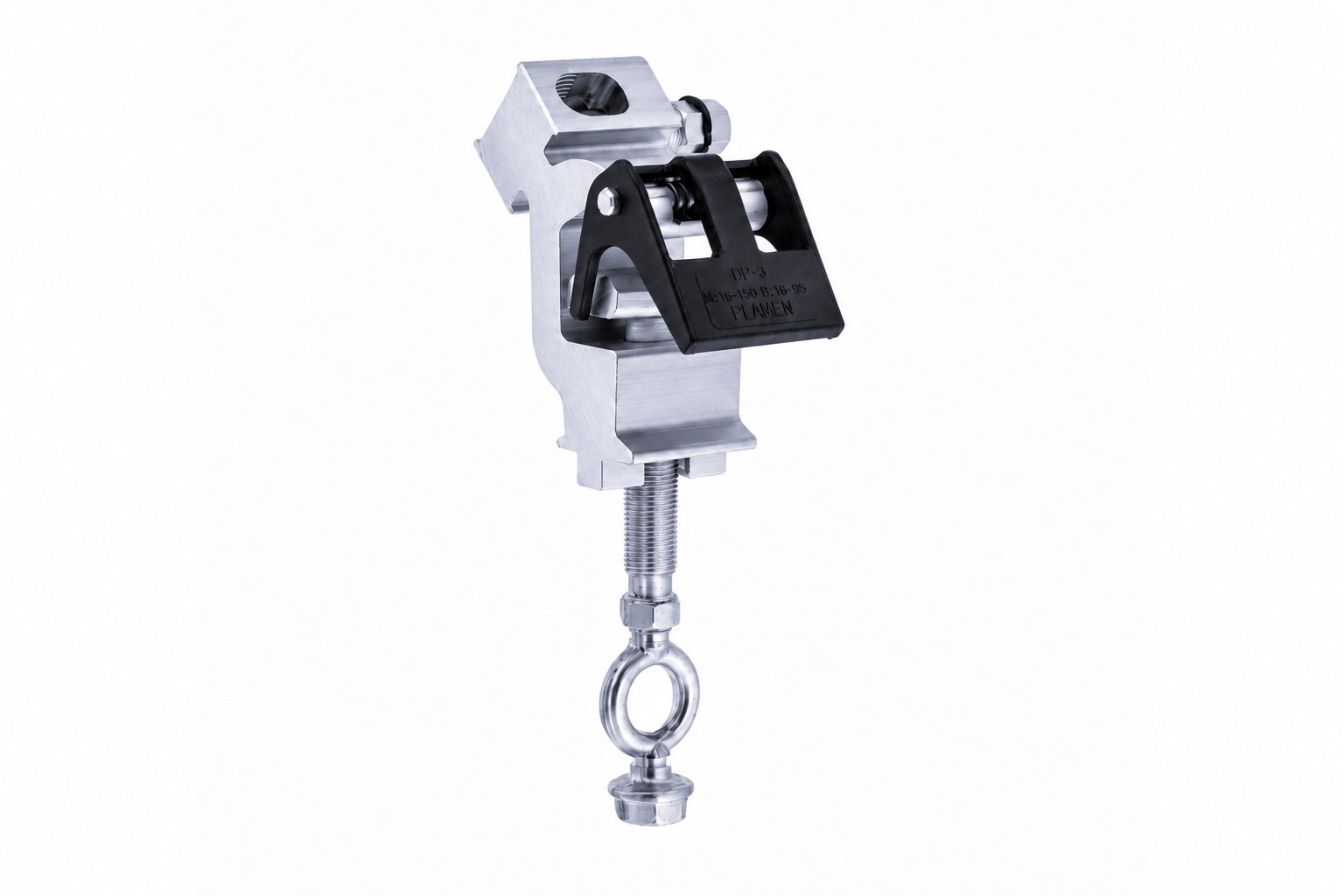

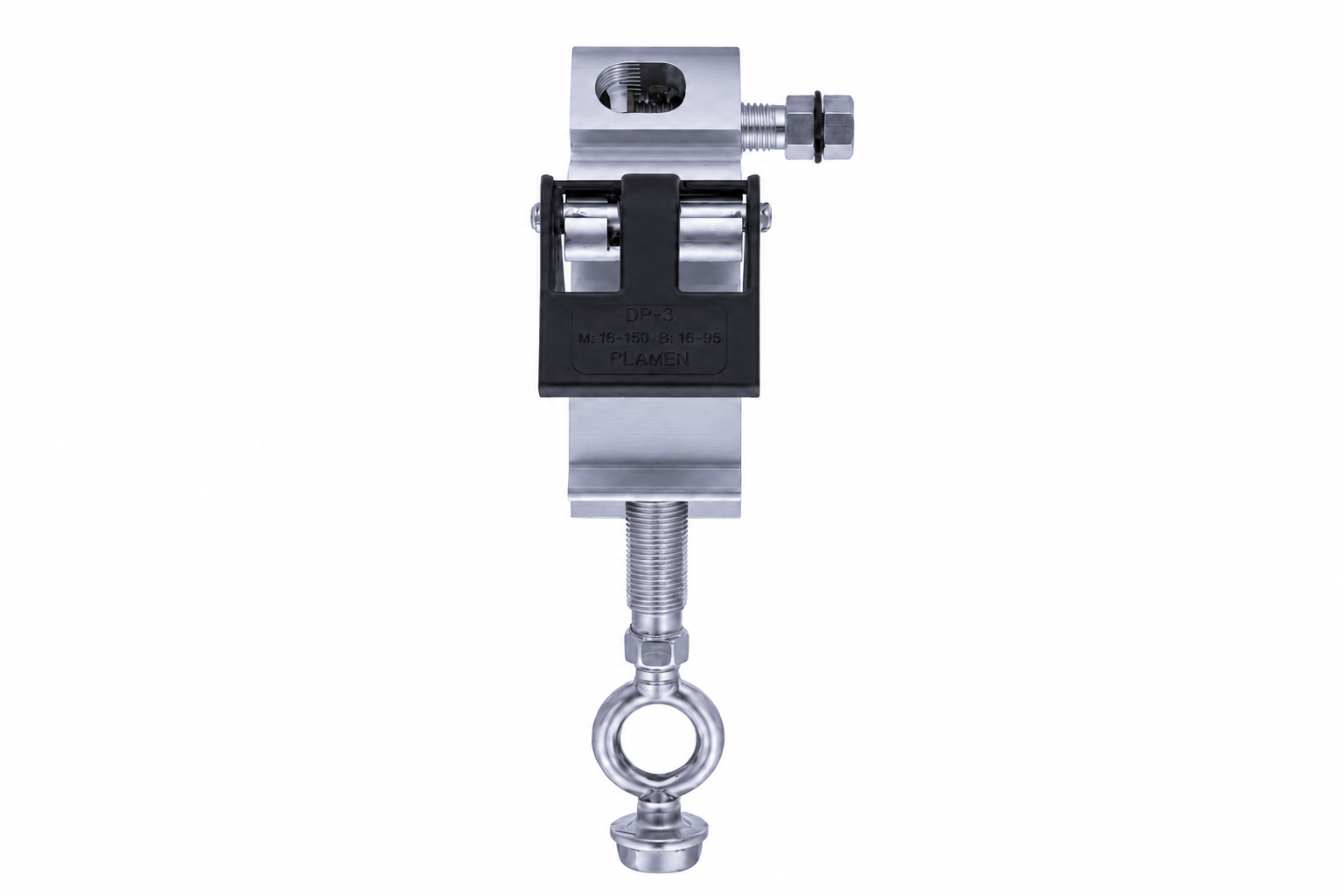

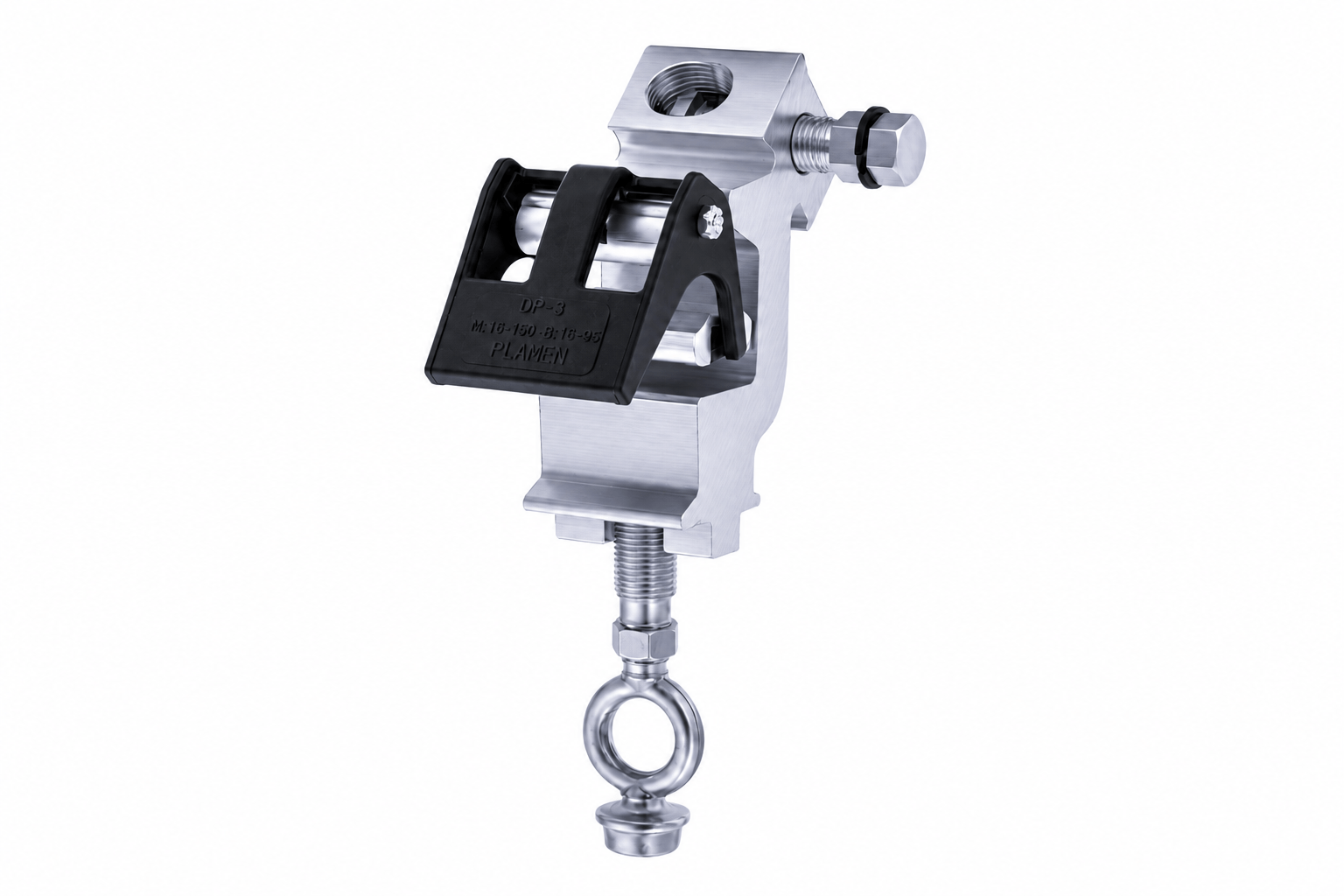

Live line connectors DP-3

ID: P419003

LIVE LINE CONNECTOR
DLive line connector DP-3 is designed for insulation (grounding) of main conductors made of aluminium or AlSteel cable and branch conductors made of insulated or uninsulated aluminium or AlSteel cable. These connectors are mounted using rods. Designed to operate at medium voltage levels.

Description

Br. No. п/пј N. Ord. Nr.crt	Presek provodnika (mm²) Cable cross-section (mm²) Сечение провода (мм²) Section (mm²) Secțiunea conductorului (mm²)		Kodni broj Code Код (номер) Code Codul	Tip Type Тип Type Tip	Pakovanje Packing Упаковка Emballage Ambalare
	Glavni vod Main line Магистраль Ligne Linie principală	Odvojni vod Branch line Ответвление Dérivation Linie de branșament
1	Al 16-150 mm² ACSR ⌀ 5-15,8 mm	Al 16-95 mm² ACSR ⌀ 5-12,5 mm	P41-90-03	DP-3	-/30
